The Colonial Dry Sink - Diagrams
See here for step by step instructions
Recalling the earlier days and simpler ways of life -- in Colonial America

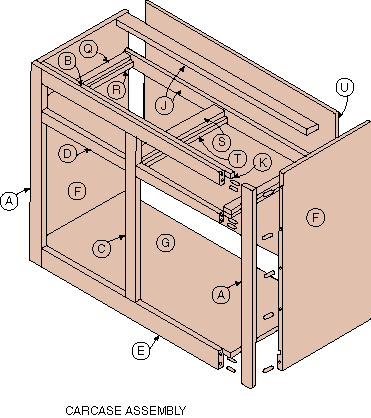

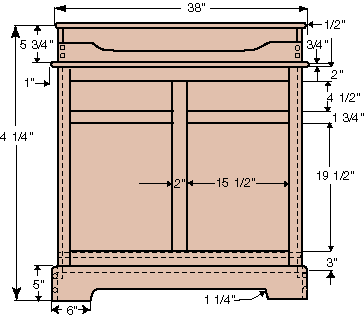

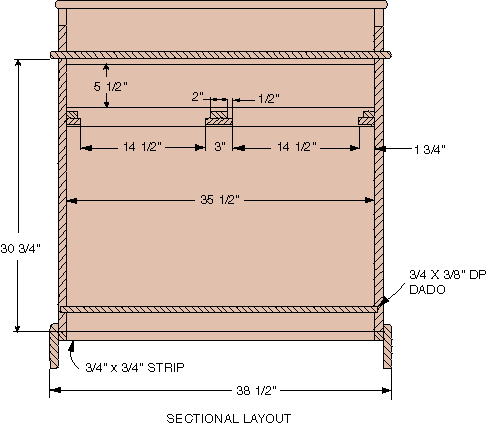

LIST OF MATERIALS
(finished dimensions in inches)
A |
Face stiles(2) | 3/4 x 2 x 30-3/4 |
B |
Face rail | 3/4 x 2 x 33 |
C |
Face center stile | 3/4 x 2 x 25-3/4 |
D |
Middle rails (2) | 3/4 x 1-3/4 x 15-1/2 |
E |
Bottom rail | 3/4 x 3 x 33 |
F |
Sides (2) | 3/4 x 16-1/2 x 30-3/4 |
G |
Bottom | 3/4 x 16-1/2 x 36-3/4 |
H |
Top | 3/4 x 18-1/4 x 39 |
J |
Braces (2) | 3/4 x 2 x 35-1/2 |
K |
Top cleat strip | 3/4 x 3/4 x 35-1/2 |
L |
Base front | 3/4 x 5 x 38-1/2 |
M |
Base sides (2) | 3/4 x 5 x 18 |
N |
Cleat strips (2) | 3/4 x 3/4 x 16-1/2 |
P |
Cleat strip | 3/4 x 3/4 x 34 |
Q |
Drawer guides (2) | 3/4 x 1-/.4 x 15-1/2 |
R |
Drawer guides (2) | 3/4 x 1-3/4 x 15-1/2 |
S |
Guide | 3/4 x 2 x 15-1/2 |
T |
Guide | 3/4 x 3 x 15-1/2 |
U |
Back | 1/4 x 36-1/4 x 28 |
V |
Splash board back | 3/4 x 5 x 35-1/2 |
W |
Splash board sides (2) | 3/4 x 5 x 17-3/4 |
X |
Splash board front | 3/4 x 3-1/2 x 37 |
Y |
Splash board shelf | 3/4 x 3-1/4 x 38 |

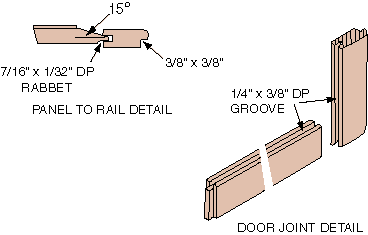

Z |
Door stiles (4) | 3/4 x 2 x 20-1/4 |
AA |
Door rails (4) | 3/4 x 2 x 13 |
BB |
Door panels (2) | 3/4 x 12-3/4 x 17 |

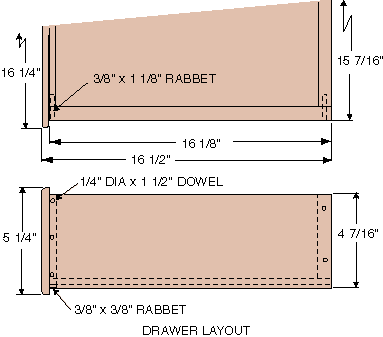

CC |
Drawer fronts (2) | 3/4 x 5-1/4 x 16-1/4 |
DD |
Drawer sides (4) | 3/4 x 4-7/16 x 16 |
EE |
Drawer backs (2) | 3/4 x 3-15/16 x 13-15/16 |
FF |
Drawer bottoms (2) | 1/4 x 14-11/16 x 16 |
MISCELLANEOUS
| (20) | 1/4" dia. x 1-1/2" long dowels |
| (30) | 3/8" dia. x 1-1/2" long dowels |
| (100 approx.) | #10 x 1-1/2" flat head wood screws |
| (2 pairs) | Recessed cabinet hinges |
| (4) | 1-1/4" dia. knobs |
| (12) | 1/2" dowel buttons |
